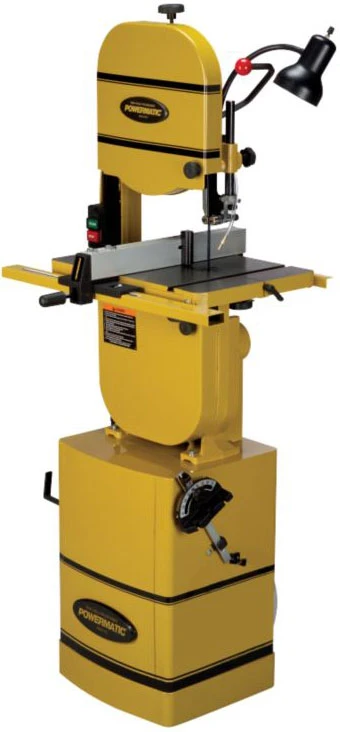

Powermatic 1791216K PWBS-14CS Bandsaw

Standard Equipment:

• PWBS-14CS Bandsaw – 1791216K
• CARTER Quick Tension Release
• Adjustable Miter Gauge
• T-Style Rip Fence with Resaw Assembly
• 1/4-in Band Saw Blade
• Gooseneck Work Light
• Chip Blower
• 1791217 – Riser Block

Optional Accessories:

• Band Saw Blades

Specifications:

• Band Saw Size/Wheel Diameter: 14″
• Cutting Capacity Width: 13-1/2″
• Cutting Capacity Height: 6″
• Blade Length: 93-1/2″
• Blade Speed: 3,000 SFPM
• Table Size (L x W): 15″ x 15″
• Table w/Extension (L x W): 15″x20-1/2″
• Table Height from Floor: 44″
• Maximum Saw Blade Width: 3/4″
• Minimum Saw Blade Width: 1/8″
• Table Tilt: 10° Left, 45° Right
• Dust Port Outside Diameter: 4″
• Motor Power: 1-1/2 HP
• Motor Phase: Single
• Motor Voltage: 115V, 230V
• Prewired Voltage: 115V
• Motor Current: 11A, 5-1/2A
• Weight: 203 lbs

Features:

• CARTER quick-tension release lever with full tension and blade release levels.
• With a powerful 1-1/2 HP TEFC motor and a wide Poly-V belt, full power is transferred from the motor to the drive wheel.
• Features a durable micro-adjustable dual bearing blade guide system above and below the table.
• Extra-large, two-piece cast-iron table consists of a 15-in x 20-7/8-in tilting (45 degrees right and 10 degrees left) section and a fixed 15-in x 5-in extension for a total working surface of 15-in x 20-in.
• Exclusive design, quick-release precision T-square style rip fence with 4-in resaw attachment.
• Precision-balanced, nine-spoke cast-iron wheels run smoothly.
• Easy-to-read tensioning gauge settings indicated in blade width increments.
• Full 6-in under-guide capacity with 13-1/2-in width capacity.
• 60 Watt lamp built into the body provides direct light on the blade and workpiece while cutting (bulb not included).
• Chip blower ensures a clean, visible cut line.
